Ⅰ 產品簡介
名稱：超高頻讀寫器陶瓷天線ZJTCTX-2DBI
Ⅱ 主要技術參數
| 天線（Antenna） | ||
| 1 | Antenna model(天線規格) | 7060D（60mm*60mm*5mm） |
| 2 | Frequency Range(頻率范圍) | 922MHz±2MHz |
| 3 | V.S.W.R（駐波比） | 1.5 MAX |
| 4 | Band With@10dB(10dB帶寬) | 5.5 MHz MIN |
| 5 | Gain(增益) | 4 dB typ @70mm*70mm groundplane |
| 6 | Impendence（阻抗） | 50Ω |
| 7 | Polarization（極化方式） | RHCP |
| 材料（Material） | ||
| No | Part Name | SPEC |
| 1 | Antenna | Dielectric Ceramics |
| 2 | PCB | FR4 |
| 3 | Bridge(電橋) | HCO900A03 |
| 4 | Resistance（電阻） | 100Ω(0402) |
| 5 | RF Cable （線材） | RG316 |
| L=20.5cm | ||
| 6 | RF Connector（接頭） | SMA公頭內針 |
| 環境條件（Environment Condition） | ||
| 1 | Working Temp（工作溫度） | -40℃～+85℃, 10%～95% RH |
| 2 | Storage Temp（貯存溫度） | -55℃～+100℃, 10%～95% RH |
| 3 | Vibration（震動） | Sine sweep @1.5mmAM 10~55Hz each Axis |
Ⅲ 測試圖表（Testing Curve）

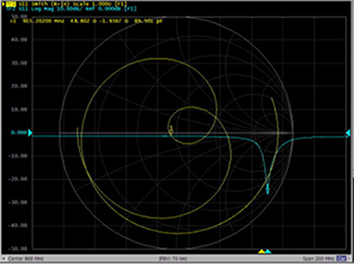

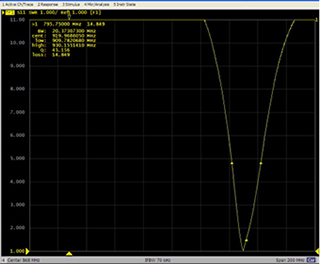

天線阻抗及駐波比（Patch Simth& VSWR）

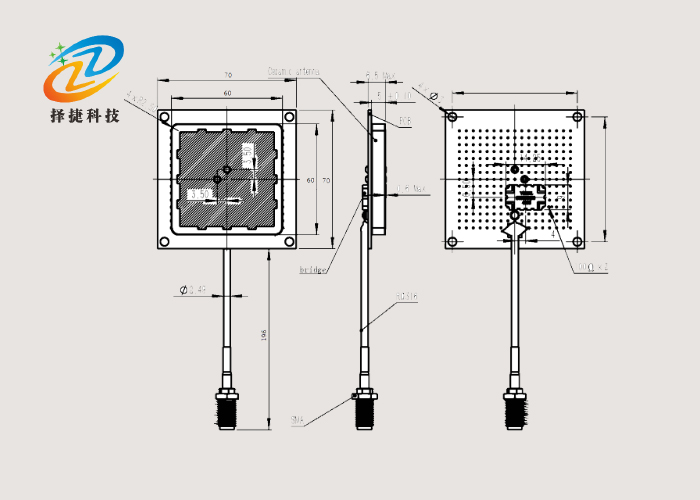

Ⅳ 結構圖（Structure）
Ⅴ 注意事項（Note）
